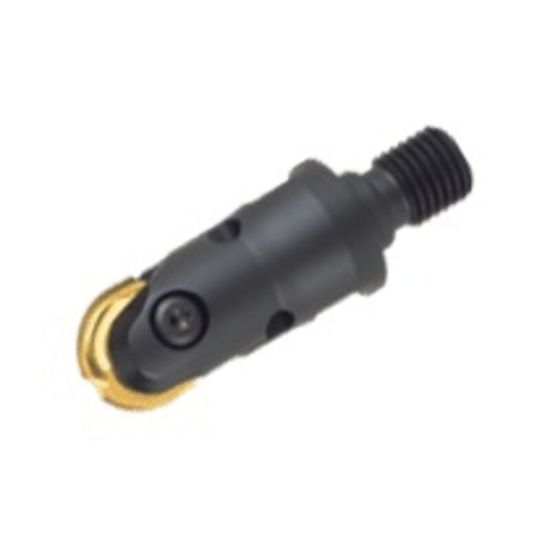

Picture of ISCAR CDP D20-M12 Milling Cutter 0.787 Diameter Screw On M12 2 Flute

ISCAR CDP D20-M12 Milling Cutter 0.787 Diameter Screw On M12 2 Flute

ANSI: CDP D20-M12

ISO: CDP D20-M12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3101238
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Made In USA No
Insert Type Neutral
Insert/Tool Tool
Shipping State Texas
Application Copy Milling, Profile Milling
Dimensional Specifications
Cutter Dia 0.7870 19.99MM
Flutes/Inserts 2
Depth Of Cut Max 0.3400
Cut Dia Max 0.7870 19.99MM
Tool Material Steel
Cut Dia Min 0.7870 19.99MM
Insert Size Ic D1
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Cutting & Machining Properties
Coolant Thru No
Insert Style CR
Cool Sply Type External
Insert Shape/Cutter Pocket Shape Ball
Fasteners & Connectors
Insert Screw 7000402
