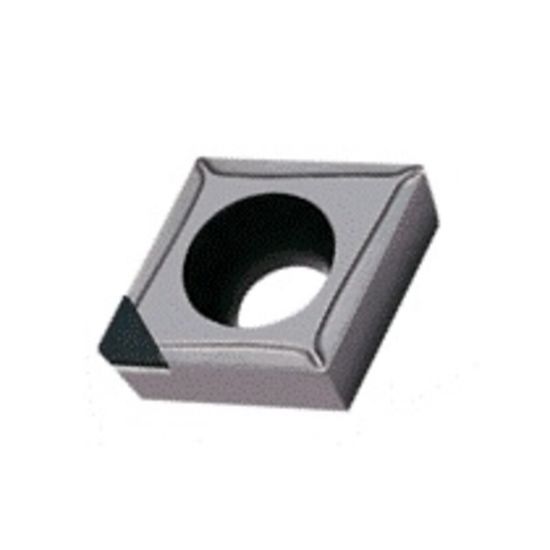

Picture of ISCAR CCGW04T102T01015-1 IB10H Turning Insert 80.0° CBN 0.008 Corner Radius

ISCAR CCGW04T102T01015-1 IB10H Turning Insert 80.0° CBN 0.008 Corner Radius

ANSI: CCGW04T102T01015-1 IB10H

ISO: CCGW04T102T01015-1 IB10H

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3322788
Delivery date: 3-5 days
$36.53

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Details

80° Rhombic Inserts with a Single CBN Top Corner Tip and 7° Clearance for Machining Hardened Steel

Grade and Coating Description

Extra fine PCBN grain size. Suitable for high speed machining of hardened steels (45-65 HRC) under stable conditions.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Turning Insert
Package Size 10
Shipping State Texas
Grade IB10H
Made In USA No
Insert Application Finishing
Insert Type Positive
Dimensional Specifications
Corner Radius 0.0080 0.20MM
Cut Rating <65HRC Steel
Insert Size Ic 04T
Cutting & Machining Properties
Insert Style CC
Cutting Edge Mat CBN
Insert Shape/Cutter Pocket Shape 80.0°
