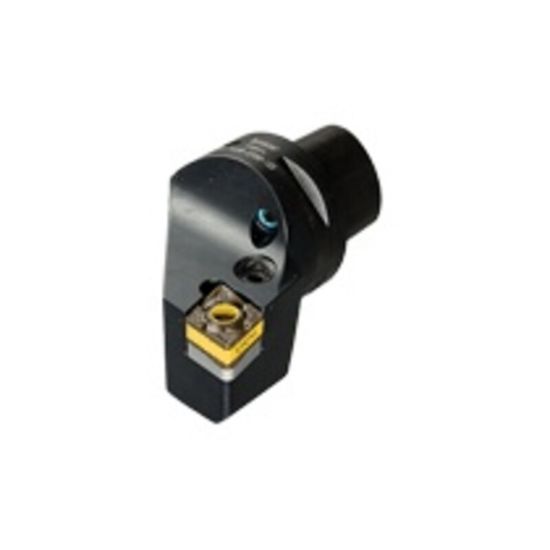

Picture of ISCAR C6 PCLNR-45065-16X Turning Stick Tool 80.0° Insert 2.362 PSC "Capto Type"

ISCAR C6 PCLNR-45065-16X Turning Stick Tool 80.0° Insert 2.362 PSC "Capto Type"

ANSI: C6 PCLNR-45065-16X

ISO: C6 PCLNR-45065-16X

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3602915
Delivery date: 3-5 days
$394.56

Details

Lever lock tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks, carrying the CNMX or CNMG negative 80° rhombic inserts.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Shipping State Texas
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Lead Angle 95°
Machine Side Connection Type PSC "Capt0 Type"
Machine Side Connection Size 2.3622 60.00MM
Shank/Pilot Dia 2.3622 60.00MM
Insert Size Ic 16 "55"
Overall Len 4.0550 103.00MM
Cutting & Machining Properties
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
