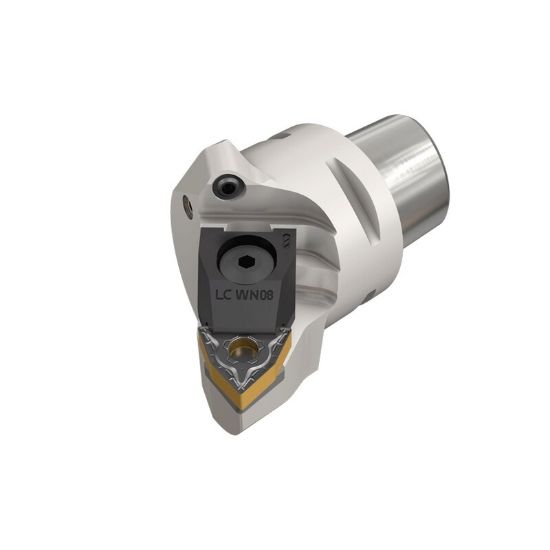

Picture of ISCAR C6 MULNL-45065-12MW Turning Stick Tool Trigon Insert 2.362 PSC "Capto Type"

ISCAR C6 MULNL-45065-12MW Turning Stick Tool Trigon Insert 2.362 PSC "Capto Type"

ANSI: C6 MULNL-45065-12MW

ISO: C6 MULNL-45065-12MW

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3602307
Delivery date: 3-5 days
$398.40

Important Notes

Only LC WN08 is supplied with the toolholder. The other two wedges should be ordered separately. RH wedge for RH tool. LH wedge for LH tool.

Details

MULTI-WEDGE tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks, carrying the negative 80° rhombic or trigon or square inserts.

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Shipping State Texas
Insert Type Negative
Made In USA No
Dimensional Specifications
Machine Side Connection Type PSC "Capt0 Type"
Machine Side Connection Size 2.3622 60.00MM
Shank/Pilot Dia 2.3622 60.00MM
Insert Size Ic 4
Tool Material Steel
Lead Angle 95°, 75°
Overall Len 4.0550 103.00MM
Cutting & Machining Properties
Insert Style WN,CN
Hand R/L Left
Insert Shape/Cutter Pocket Shape Rectagonal
