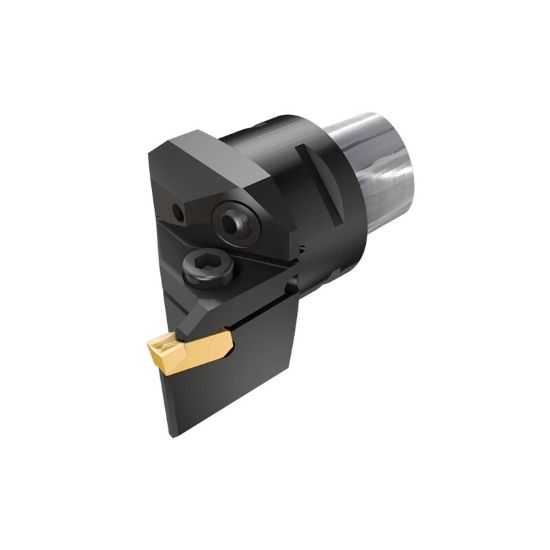

Picture of ISCAR C6 GHDR-3 Grooving,Groove Turning,Pully V Groove Stick Tool 2.362 Tool

ISCAR C6 GHDR-3 Grooving,Groove Turning,Pully V Groove Stick Tool 2.362 Tool

ANSI: C6 GHDR-3

ISO: C6 GHDR-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2891648
Delivery date: 3-5 days
$487.68

Details

External grooving turning and parting toolholders, with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks.

When using GPV and TIP inserts, toolholder tip must be modified according to insert profile to ensure clearance To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on "More Info"

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Texas
Insert Type Positive
Package Size 1
Application Pulley Groove, Ext.Groove Turning, Ext.Grooving
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 4, 3
Overall Len 3.6610 92.99MM
Depth Of Cut Max 0.3540
Machine Side Connection Size 2.3622 60.00MM
Machine Side Connection Type PSC "Capt0 Type"
Cutting Width 0.1100 2.79MM
Tool Material Steel
Shank/Pilot Dia 2.3622 60.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GI,GI,GI,GP,GI
