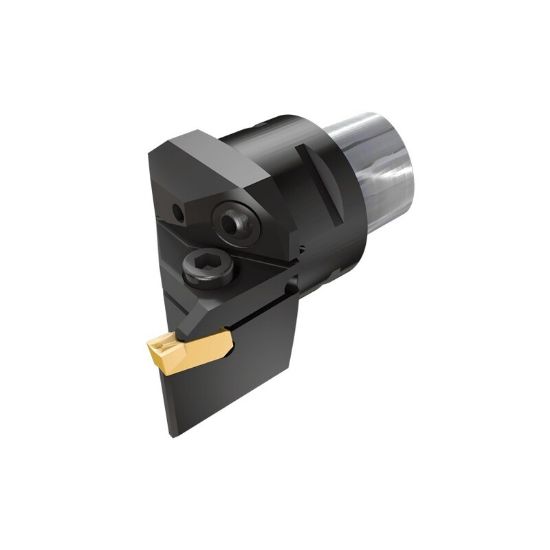

Picture of ISCAR C6 GHDL-5 Grooving,Groove Turning,Pully V Groove Adapter Holder 2.362 Tool

ISCAR C6 GHDL-5 Grooving,Groove Turning,Pully V Groove Adapter Holder 2.362 Tool

ANSI: C6 GHDL-5

ISO: C6 GHDL-5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2861104
Delivery date: 3-5 days
$487.68

Details

External grooving turning and parting toolholders, with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks.

When using GPV and TIP inserts, toolholder tip must be modified according to insert profile to ensure clearance To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on "More Info"

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Application Pulley Groove, Ext.Grooving, Ext.Groove Turning
Insert Type Positive
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 5
Machine Side Connection Size 2.3622 60.00MM
Overall Len 3.6610 92.99MM
Cutting Width 0.1970 5.00MM
Tool Material Steel
Shank/Pilot Dia 2.3622 60.00MM
Depth Of Cut Max 0.4720
Machine Side Connection Type PSC "Capt0 Type"
Cutting & Machining Properties
Insert Style GI,GI,GI,GI,GI
Insert Shape/Cutter Pocket Shape Dog Bone
