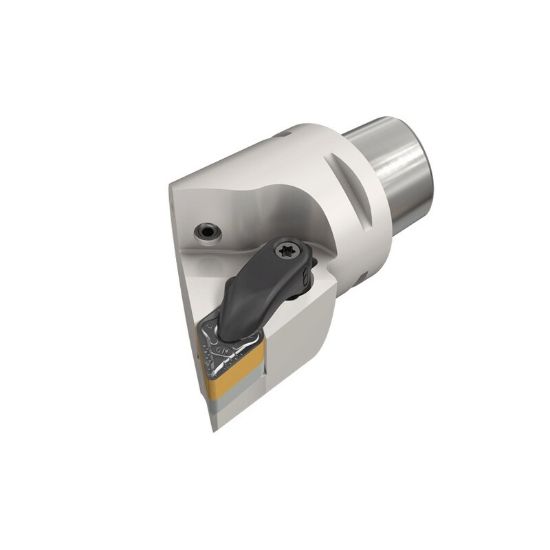

Picture of ISCAR C6 DDJNL-45065-15 Turning Stick Tool 55.0° Insert 2.362 PSC "Capto Type"

ISCAR C6 DDJNL-45065-15 Turning Stick Tool 55.0° Insert 2.362 PSC "Capto Type"

ANSI: C6 DDJNL-45065-15

ISO: C6 DDJNL-45065-15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3606633
Delivery date: 3-5 days
$398.40

Important Notes

Use RDT 443 seat for DN.. 43. inserts

Details

R-clamp tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks, carrying the negative 55° rhombic inserts.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Shipping State Texas
Dimensional Specifications
Clearance Angle 30.0°
Tool Material Steel
Shank/Pilot Dia 2.3622 60.00MM
Lead Angle 93°
Machine Side Connection Type PSC "Capt0 Type"
Overall Len 4.0550 103.00MM
Insert Size Ic 12 "43"
Machine Side Connection Size 2.3622 60.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Hand R/L Left
