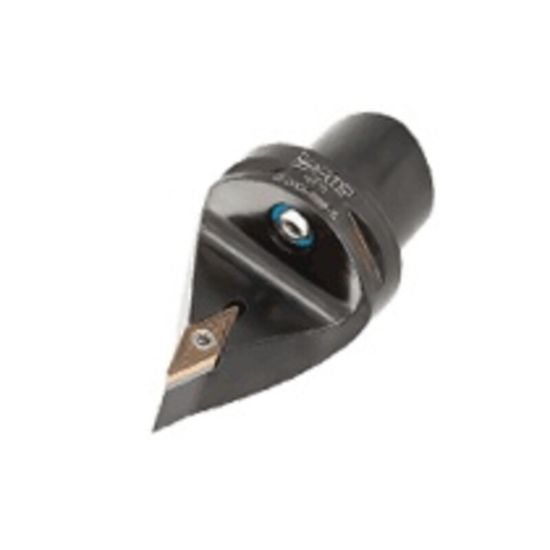

Picture of ISCAR C5 SVVCN-00060-16 Turning Stick Tool 35.0° Insert 1.968 PSC "Capto Type"

ISCAR C5 SVVCN-00060-16 Turning Stick Tool 35.0° Insert 1.968 PSC "Capto Type"

ANSI: C5 SVVCN-00060-16

ISO: C5 SVVCN-00060-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3602480
Delivery date: 3-5 days
$419.52

Details

72.5° lead angle screw lock tools with CAMFIX (ISO 26623-1 standard) exchangeable shanks carrying the 35° rhombic inserts with 7° clearance angle.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Application General Purpose
Made In USA No
Insert Type Positive
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type PSC "Capt0 Type"
Machine Side Connection Size 1.9685 50.00MM
Lead Angle 72.5°
Shank/Pilot Dia 1.9685 50.00MM
Overall Len 3.1500 80.01MM
Tool Material Steel
Insert Size Ic 16 "33"
Clearance Angle 70.0°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VC
Hand R/L Neutral
