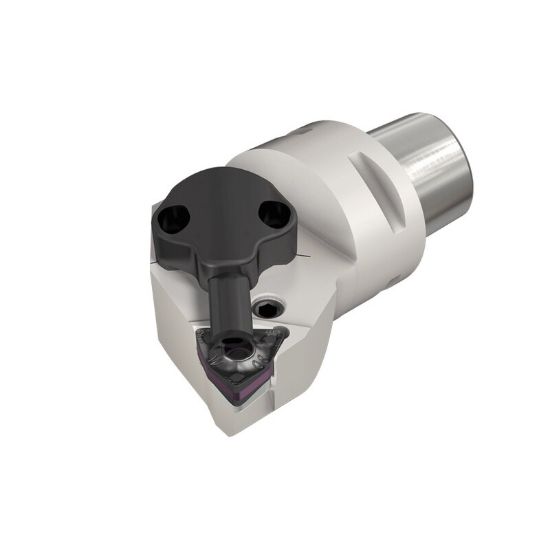

Picture of ISCAR C5 PWLNR-35060-08X-JHP Turning Stick Tool Trigon Insert 1.968 PSC "Capto Type"

ISCAR C5 PWLNR-35060-08X-JHP Turning Stick Tool Trigon Insert 1.968 PSC "Capto Type"

ANSI: C5 PWLNR-35060-08X-JHP

ISO: C5 PWLNR-35060-08X-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3603543
Delivery date: 3-5 days
$585.60

Details

Lever lock tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks and channels for high pressure coolant, carrying HELITURN LD WNMX or WNMG inserts (enabled by changing the seat).

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 1.9685 50.00MM
Lead Angle 95°
Tool Material Steel
Overall Len 3.5430 89.99MM
Machine Side Connection Type PSC "Capt0 Type"
Insert Size Ic 08 "45"
Machine Side Connection Size 1.9685 50.00MM
Cutting & Machining Properties
Insert Style WN
Hand R/L Right
Insert Shape/Cutter Pocket Shape Trigon
