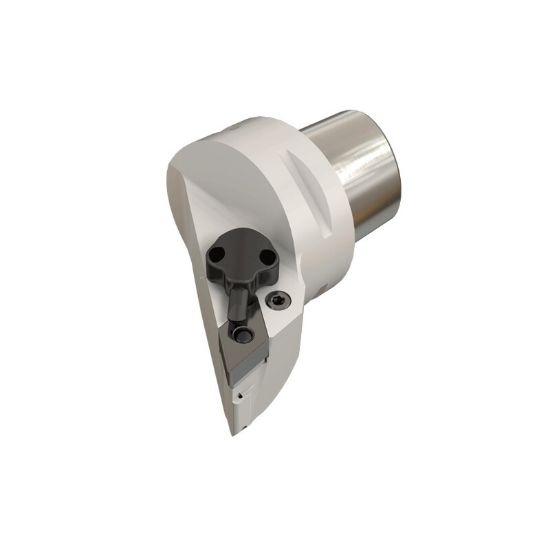

Picture of ISCAR C5 PDJNL 35060-15-JHP Turning Stick Tool 55.0° Insert 1.968 PSC "Capto Type"

ISCAR C5 PDJNL 35060-15-JHP Turning Stick Tool 55.0° Insert 1.968 PSC "Capto Type"

ANSI: C5 PDJNL 35060-15-JHP

ISO: C5 PDJNL 35060-15-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3603549
Delivery date: 3-5 days
$585.60

Details

Lever lock tools with CAMFIX (ISO 26623-1 standard) exchangeable shanks and channels for high pressure coolant, carrying negative 55° inserts.

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Made In USA No
Insert Application General Purpose
Insert Type Negative
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Insert Size Ic 12 "43"
Clearance Angle 27.0°
Machine Side Connection Type PSC "Capt0 Type"
Tool Material Steel
Overall Len 3.5430 89.99MM
Lead Angle 93°
Shank/Pilot Dia 1.9685 50.00MM
Machine Side Connection Size 1.9685 50.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Hand R/L Left
