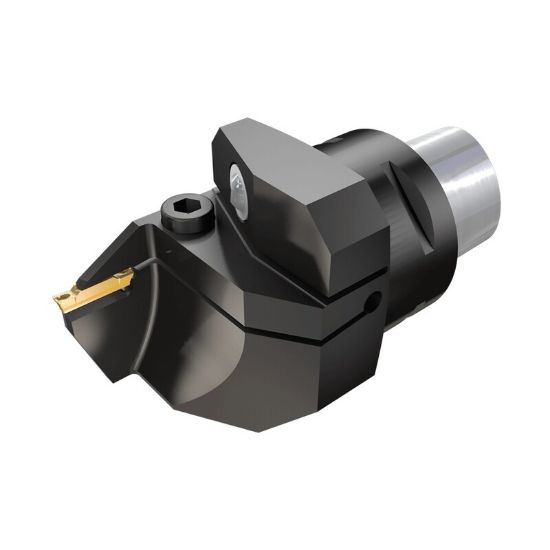

Picture of ISCAR C5 HELIL 3T20 Cut Off,Grooving,Groove Turning Stick Tool 1.968 Tool

ISCAR C5 HELIL 3T20 Cut Off,Grooving,Groove Turning Stick Tool 1.968 Tool

ANSI: C5 HELIL 3T20

ISO: C5 HELIL 3T20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2500671
Delivery date: 3-5 days
$424.32

Details

The depth of cut (CDX) for grooving is limited by the part diameter CUTDIA, for grooving depth capacity, click on "More Info" To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on "More Info"

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Texas
Insert Application General Purpose
Made In USA No
Insert Type Positive
Insert/Tool Tool
Application Ext.Grooving, Parting, Ext.Groove Turning
Dimensional Specifications
Insert Size Ic 3
Machine Side Connection Type PSC "Capt0 Type"
Cutting Width 0.1180 3.00MM
Machine Side Connection Size 1.9685 50.00MM
Shank/Pilot Dia 1.9685 50.00MM
Overall Len 3.7400 95.00MM
Tool Material Steel
Cutting & Machining Properties
Insert Style GR,HG
Insert Shape/Cutter Pocket Shape Other
