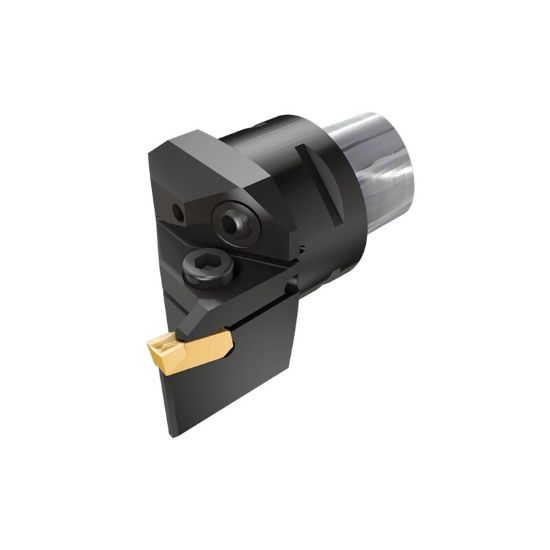

Picture of ISCAR C5 GHDL-3 Grooving,Groove Turning,Pully V Groove Adapter Holder 1.968 Tool

ISCAR C5 GHDL-3 Grooving,Groove Turning,Pully V Groove Adapter Holder 1.968 Tool

ANSI: C5 GHDL-3

ISO: C5 GHDL-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2861100
Delivery date: 3-5 days
$424.32

Details

External grooving turning and parting toolholders, with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks.

When using GPV and TIP inserts, toolholder tip must be modified according to insert profile to ensure clearance To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on "More Info"

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Grooving, Ext.Groove Turning, Pulley Groove
Insert Type Positive
Package Size 1
Shipping State Texas
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Tool Material Steel
Overall Len 3.3460 84.99MM
Machine Side Connection Size 1.9685 50.00MM
Shank/Pilot Dia 1.9685 50.00MM
Insert Size Ic 3
Machine Side Connection Type PSC "Capt0 Type"
Cutting Width 0.1100 2.79MM
Depth Of Cut Max 0.3540
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GI,GI,GI,GP,GI
