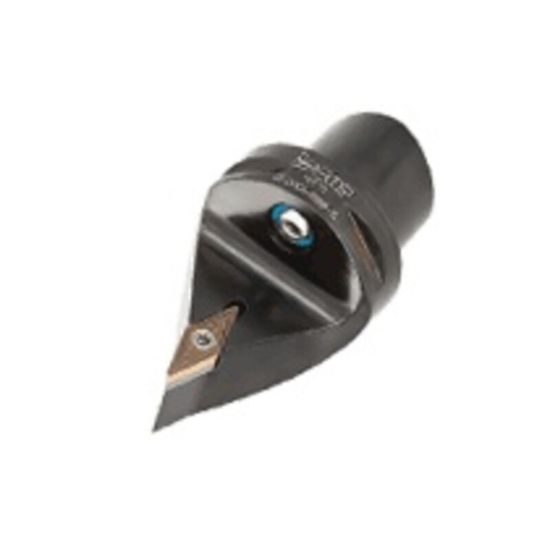

Picture of ISCAR C4 SVVCN-00050-11 Turning Stick Tool 35.0° Insert 1.574 PSC "Capto Type"

ISCAR C4 SVVCN-00050-11 Turning Stick Tool 35.0° Insert 1.574 PSC "Capto Type"

ANSI: C4 SVVCN-00050-11

ISO: C4 SVVCN-00050-11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3606639
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

72.5° lead angle screw lock tools with CAMFIX (ISO 26623-1 standard) exchangeable shanks carrying the 35° rhombic inserts with 7° clearance angle.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Package Size 1
Insert Type Positive
Application Ext.Turning
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type PSC "Capt0 Type"
Shank/Pilot Dia 1.5748 40.00MM
Clearance Angle 70.0°
Lead Angle 72.5°
Machine Side Connection Size 1.5748 40.00MM
Insert Size Ic 11 "21"
Tool Material Steel
Overall Len 2.5200 64.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VC
Hand R/L Neutral
