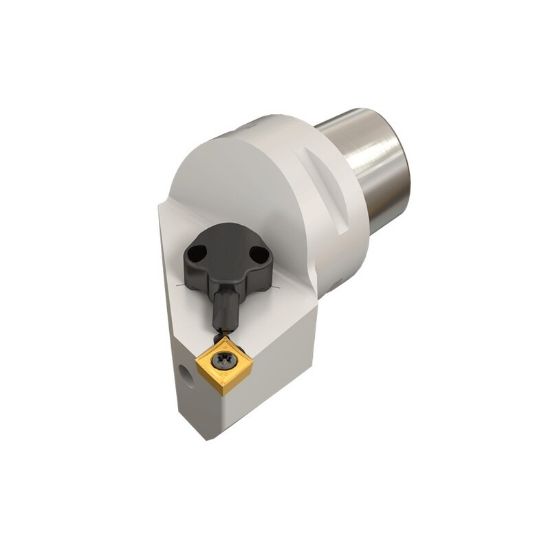

Picture of ISCAR C4 SCLCL 27050-09-JHP Turning Stick Tool 80.0° Insert 1.574 PSC "Capto Type"

ISCAR C4 SCLCL 27050-09-JHP Turning Stick Tool 80.0° Insert 1.574 PSC "Capto Type"

ANSI: C4 SCLCL 27050-09-JHP

ISO: C4 SCLCL 27050-09-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3603557
Delivery date: 3-5 days
$513.60

Details

Screw clamp tools with CAMFIX (ISO 26623-1) shanks and channels for high pressure coolant, carrying the positive 80° rhombic inserts.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ext.Turning
Package Size 1
Made In USA No
Insert/Tool Tool
Insert Application General Purpose
Shipping State Texas
Dimensional Specifications
Lead Angle 95°
Machine Side Connection Type PSC "Capt0 Type"
Shank/Pilot Dia 1.5748 40.00MM
Overall Len 2.9130 73.99MM
Insert Size Ic 09 "32"
Tool Material Steel
Machine Side Connection Size 1.5748 40.00MM
Cutting & Machining Properties
Insert Style CC
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
