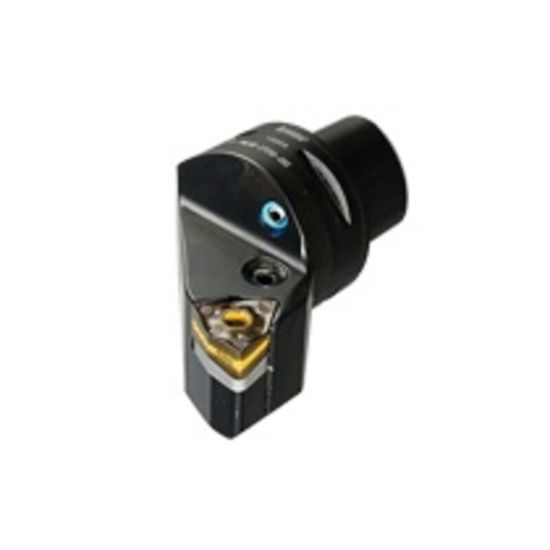

Picture of ISCAR C4 PWLNL-27050-08X Turning Stick Tool Trigon Insert 1.574 PSC "Capto Type"

ISCAR C4 PWLNL-27050-08X Turning Stick Tool Trigon Insert 1.574 PSC "Capto Type"

ANSI: C4 PWLNL-27050-08X

ISO: C4 PWLNL-27050-08X

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3602918
Delivery date: 3-5 days
$308.16

Details

Lever lock tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks, carrying HELITURN LD WNMX or WNMG inserts (enabled by changing the seat).

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Made In USA No
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Shipping State Texas
Dimensional Specifications
Insert Size Ic 08 "45"
Lead Angle 95°
Machine Side Connection Type PSC "Capt0 Type"
Shank/Pilot Dia 1.5748 40.00MM
Overall Len 2.9130 73.99MM
Tool Material Steel
Machine Side Connection Size 1.5748 40.00MM
Cutting & Machining Properties
Insert Style WN
Insert Shape/Cutter Pocket Shape Trigon
Hand R/L Left
