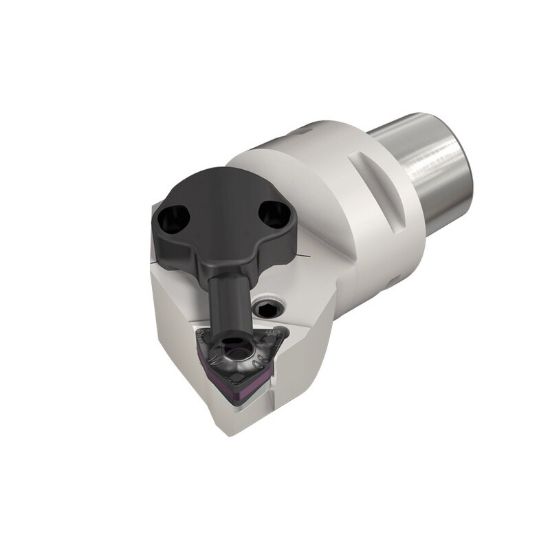

Picture of ISCAR C4 PWLNL-27050-08X-JHP Turning Stick Tool Trigon Insert 1.574 PSC "Capto Type"

ISCAR C4 PWLNL-27050-08X-JHP Turning Stick Tool Trigon Insert 1.574 PSC "Capto Type"

ANSI: C4 PWLNL-27050-08X-JHP

ISO: C4 PWLNL-27050-08X-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3603542
Delivery date: 3-5 days
$526.08

Details

Lever lock tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks and channels for high pressure coolant, carrying HELITURN LD WNMX or WNMG inserts (enabled by changing the seat).

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Texas
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Lead Angle 95°
Machine Side Connection Size 1.5748 40.00MM
Tool Material Steel
Overall Len 2.9130 73.99MM
Insert Size Ic 08 "45"
Machine Side Connection Type PSC "Capt0 Type"
Shank/Pilot Dia 1.5748 40.00MM
Cutting & Machining Properties
Insert Style WN
Hand R/L Left
Insert Shape/Cutter Pocket Shape Trigon
