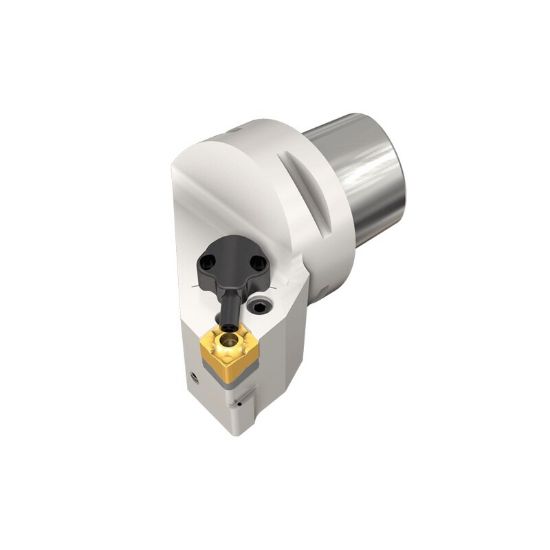

Picture of ISCAR C4 PCLNR-27050-09X-JHP Turning Stick Tool 80.0° Insert 1.574 PSC "Capto Type"

ISCAR C4 PCLNR-27050-09X-JHP Turning Stick Tool 80.0° Insert 1.574 PSC "Capto Type"

ANSI: C4 PCLNR-27050-09X-JHP

ISO: C4 PCLNR-27050-09X-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3603578
Delivery date: 3-5 days
$526.08

Details

Lever lock tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks and channels for high pressure coolant, carrying CNMX or CNMG inserts (enabled by changing the seat).

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Insert Size Ic 09 "34"
Machine Side Connection Type PSC "Capt0 Type"
Shank/Pilot Dia 1.5748 40.00MM
Lead Angle 95°
Machine Side Connection Size 1.5748 40.00MM
Overall Len 2.9130 73.99MM
Cutting & Machining Properties
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
