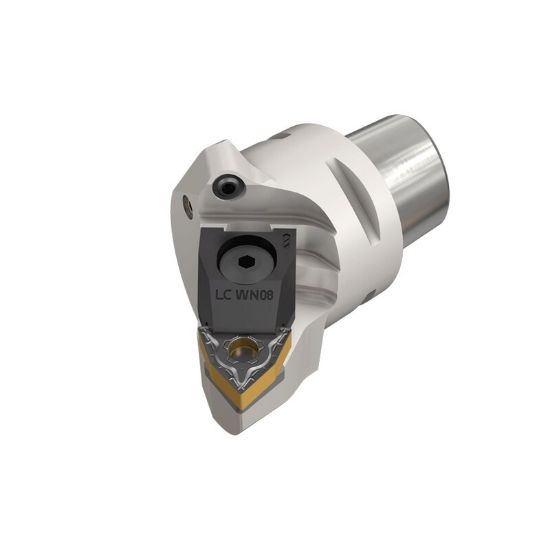

Picture of ISCAR C4 MULNR 27050-12MW Turning Stick Tool Trigon Insert 1.574 PSC "Capto Type"

ISCAR C4 MULNR 27050-12MW Turning Stick Tool Trigon Insert 1.574 PSC "Capto Type"

ANSI: C4 MULNR 27050-12MW

ISO: C4 MULNR 27050-12MW

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3606616
Delivery date: 3-5 days
$312.96

Important Notes

Only LC WN08 is supplied with the toolholder. The other two wedges should be ordered separately. RH wedge for RH tool. LH wedge for LH tool.

Details

MULTI-WEDGE tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks, carrying the negative 80° rhombic or trigon or square inserts.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.5748 40.00MM
Insert Size Ic 4
Tool Material Steel
Overall Len 2.9130 73.99MM
Lead Angle 96°, 75°
Shank/Pilot Dia 1.5748 40.00MM
Machine Side Connection Type PSC "Capt0 Type"
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Other
Insert Style WN,CN
