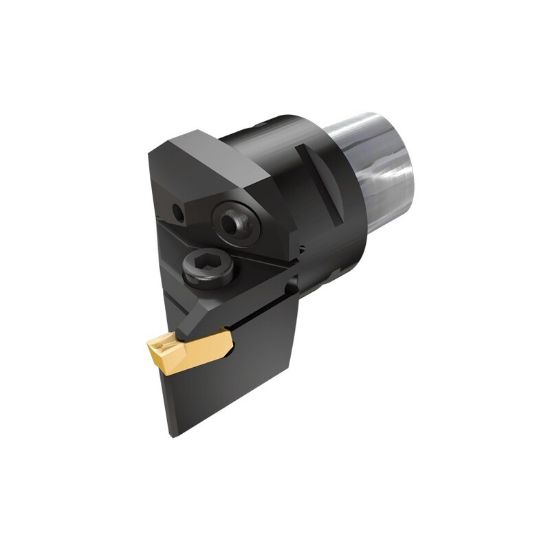

Picture of ISCAR C4 GHDR-4 Grooving,Groove Turning,Pully V Groove Stick Tool 1.574 Tool

ISCAR C4 GHDR-4 Grooving,Groove Turning,Pully V Groove Stick Tool 1.574 Tool

ANSI: C4 GHDR-4

ISO: C4 GHDR-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2893525
Delivery date: 3-5 days
$384.96

Details

External grooving turning and parting toolholders, with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks.

When using GPV and TIP inserts, toolholder tip must be modified according to insert profile to ensure clearance To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on "More Info"

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Groove Turning, Pulley Groove, Ext.Grooving
Insert Type Positive
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Texas
Dimensional Specifications
Overall Len 3.1100 78.99MM
Machine Side Connection Type PSC "Capt0 Type"
Shank/Pilot Dia 1.5748 40.00MM
Insert Size Ic 5, 4
Tool Material Steel
Cutting Width 0.1570 3.99MM
Depth Of Cut Max 0.3940
Machine Side Connection Size 1.5748 40.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GI,GI,GI,GP,GI
