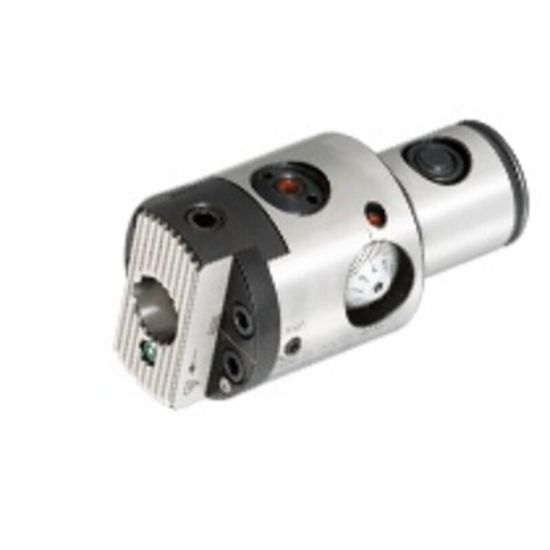

Picture of ISCAR BHFI MB20-20X40 RV Mill Boring Boring Head Finish Boring Head

ISCAR BHFI MB20-20X40 RV Mill Boring Boring Head Finish Boring Head

ANSI: BHFI MB20-20X40 RV

ISO: BHFI MB20-20X40 RV

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC4559507
Delivery date: 3-5 days
$920.27

Features And Benefits

Fine boring heads with MB modular system connection and .00008" direct diametric adjustment

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Mill Boring
Insert/Tool Tool
Insert Application General Purpose
Shipping State Texas
Package Size 1

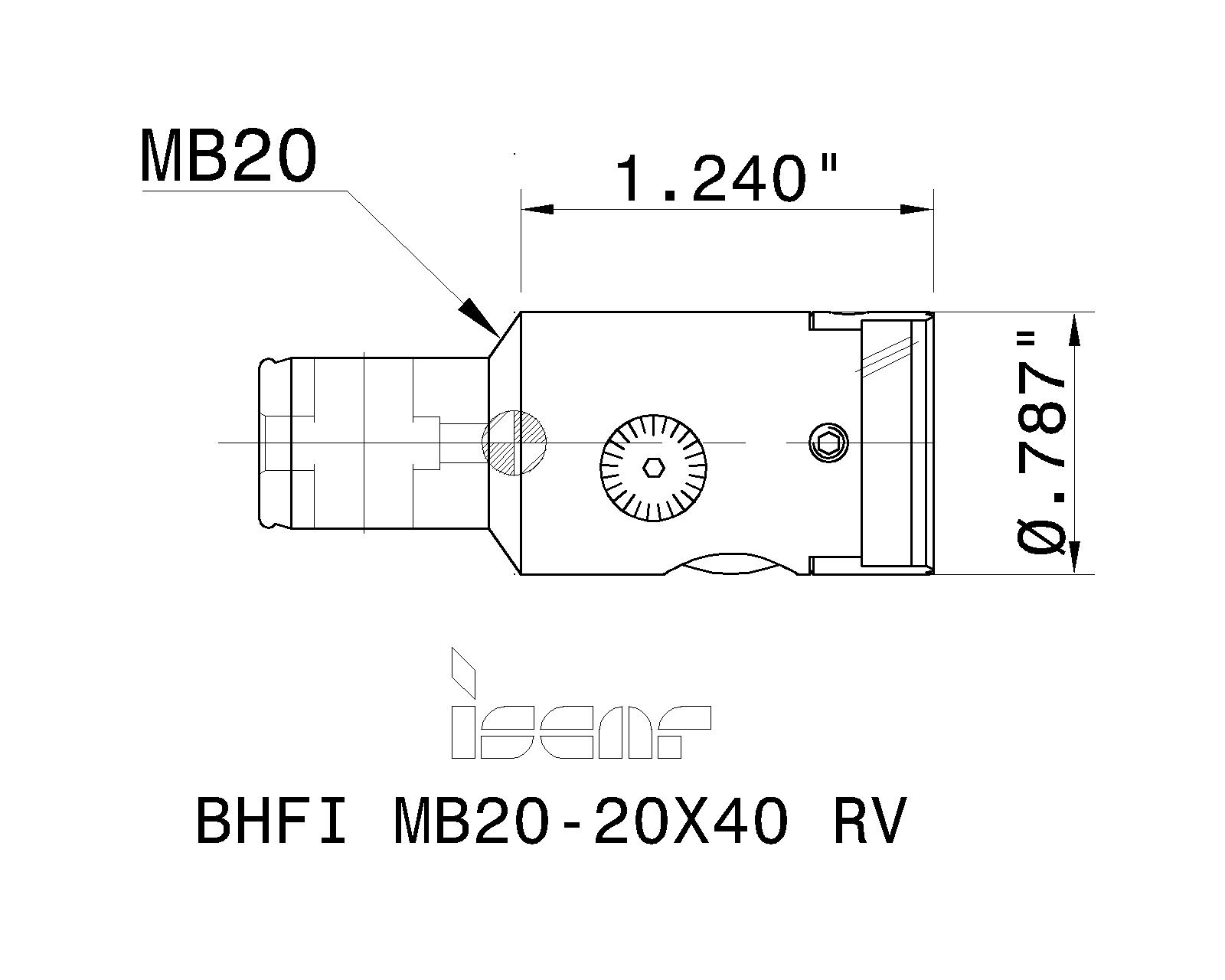

Dimensional Specifications
Cut Dia Max 1.1420 29.01MM
Cut Dia Min 0.8660 22.00MM
Machine Side Connection Size 0.7874 20.00MM
Machine Side Connection Type MB20
Tool Material Steel
Overall Len 1.5750 40.01MM
