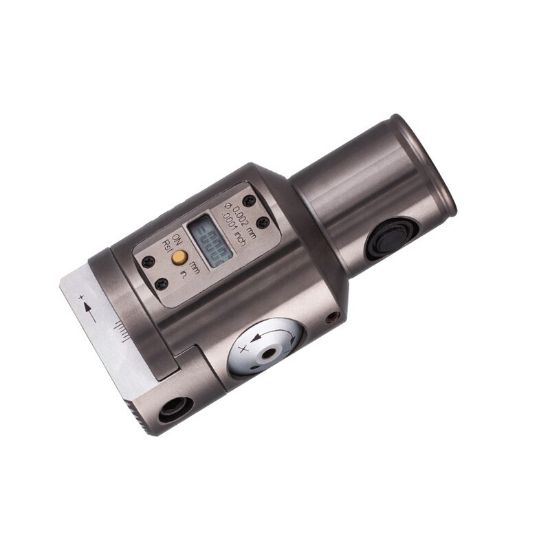

Picture of ISCAR BHD MB80-80-104 Mill Boring Boring Head Finish Boring Head

ISCAR BHD MB80-80-104 Mill Boring Boring Head Finish Boring Head

ANSI: BHD MB80-80-104

ISO: BHD MB80-80-104

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3308327
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Fine boring heads with MB modular system connection and digital 2 µm direct diametric adjustment for diameter range of 2.5 to 200 mm.

File Downloads

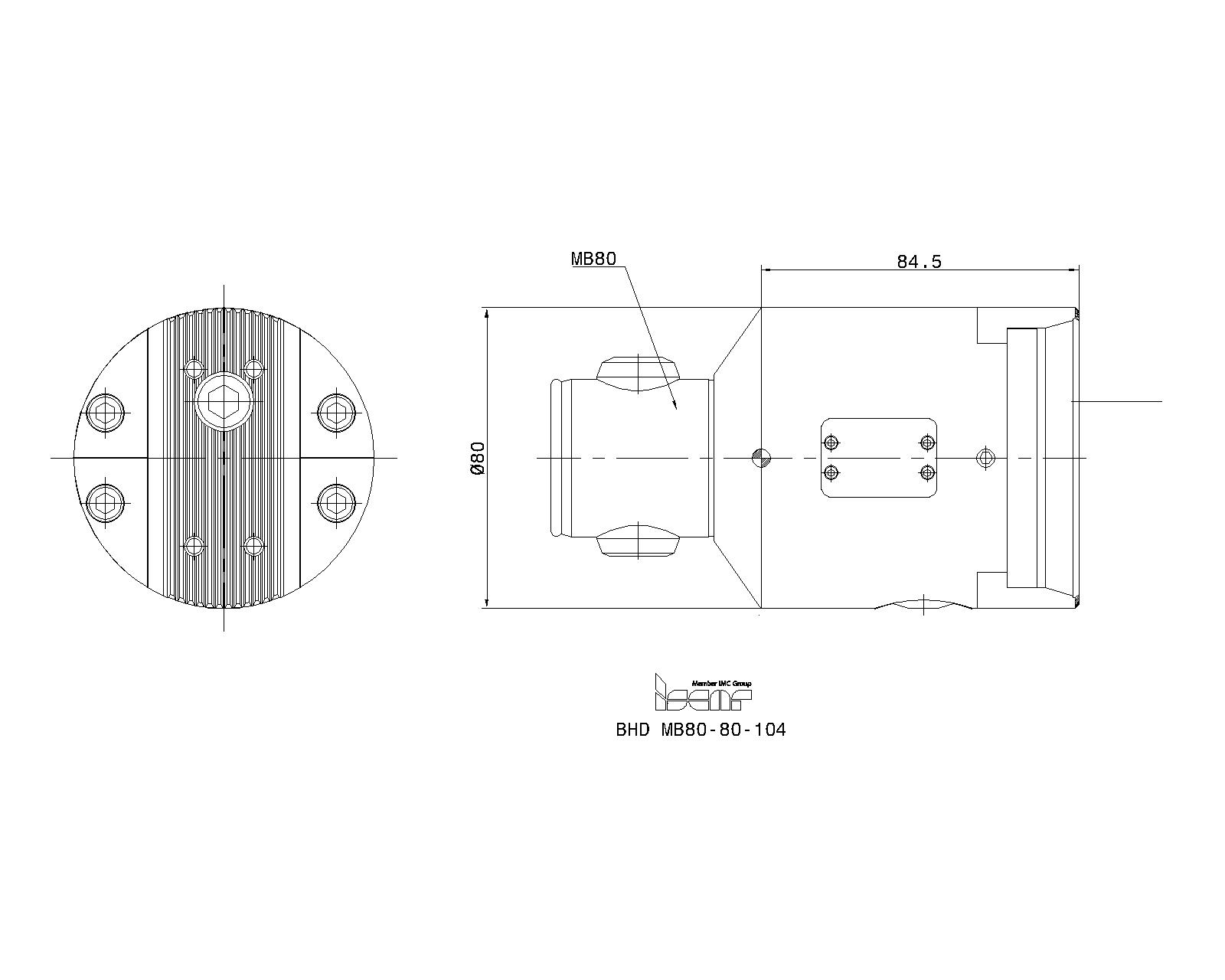

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Application Mill Boring
Dimensional Specifications
Overall Len 4.0945 104.00MM
Tool Material Steel
Machine Side Connection Size 3.1496 80.00MM
Machine Side Connection Type MB80
Cut Dia Min 0.0980 2.49MM - #40
Cut Dia Max 7.8740 200.00MM
