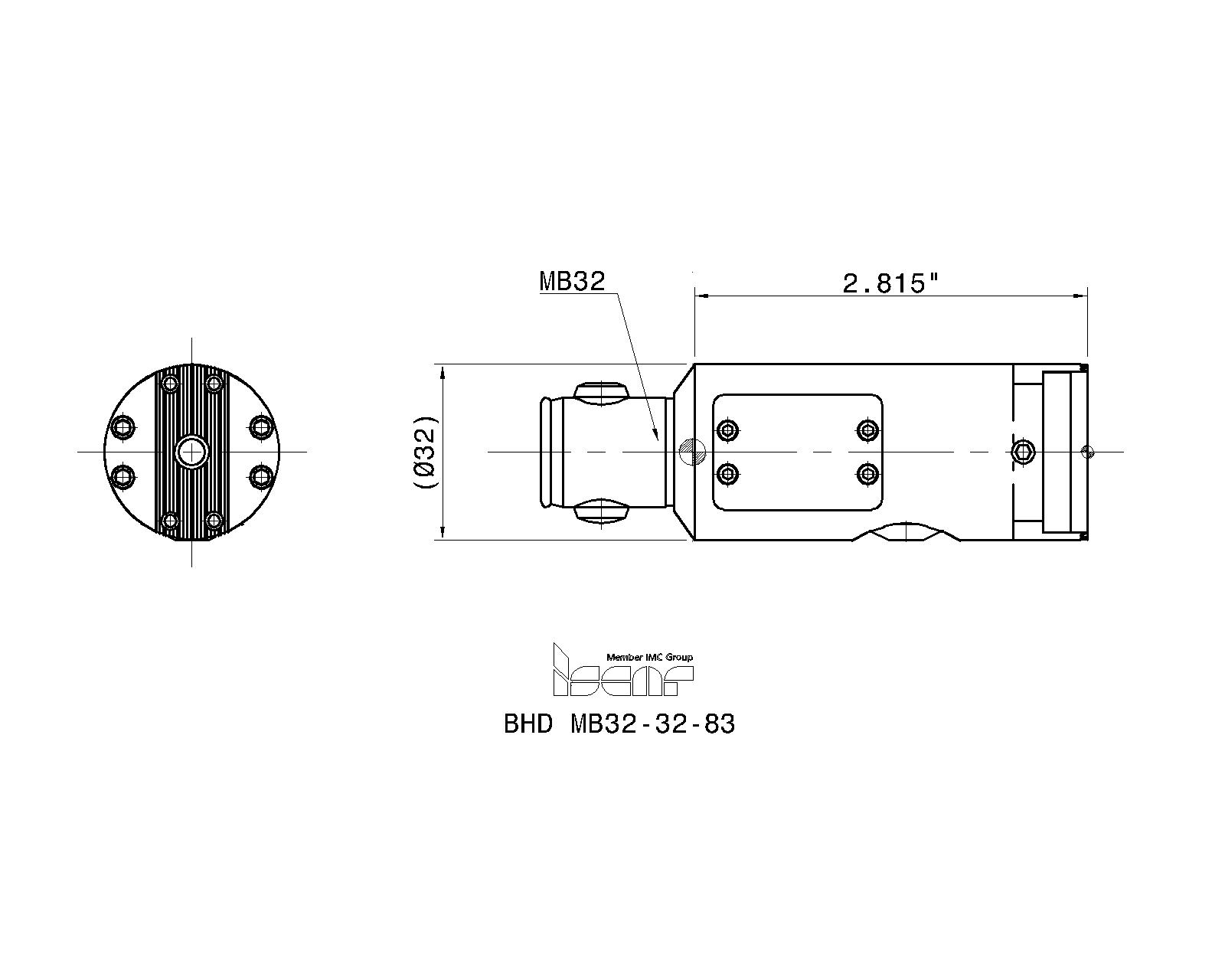

Picture of ISCAR BHD MB32-32-83 Mill Boring Boring Head Finish Boring Head

ISCAR BHD MB32-32-83 Mill Boring Boring Head Finish Boring Head

ANSI: BHD MB32-32-83

ISO: BHD MB32-32-83

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3339547
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Fine boring heads with MB modular system connection and digital 2 µm direct diametric adjustment for diameter range of 2.5 to 200 mm.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Texas
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Application Mill Boring
Dimensional Specifications
Machine Side Connection Type MB32
Cut Dia Min 0.0980 2.49MM - #40
Tool Material Steel
Machine Side Connection Size 1.2598 32.00MM
Overall Len 3.2677 83.00MM
Cut Dia Max 7.8740 200.00MM
