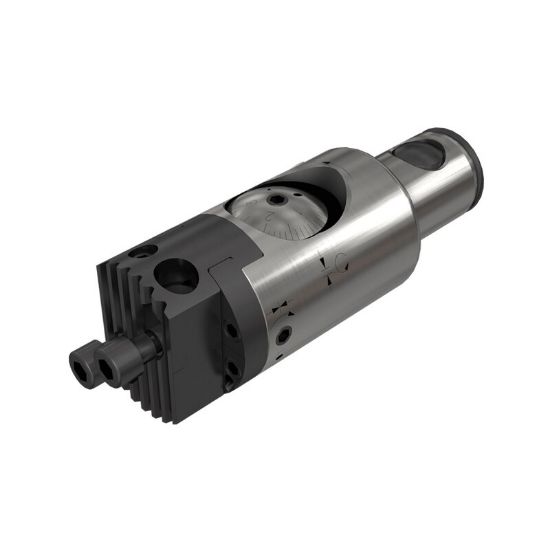

Picture of ISCAR BHCI MB25-25-57 Mill Boring Boring Head Finish Boring Head

ISCAR BHCI MB25-25-57 Mill Boring Boring Head Finish Boring Head

ANSI: BHCI MB25-25-57

ISO: BHCI MB25-25-57

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC4560124
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Fine boring head used on the MB modular boring system. .0004" direct diametric adjustment and .00008" by a vernier scale.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Package Size 1
Made In USA No
Insert Application General Purpose
Insert/Tool Tool
Application Mill Boring
Dimensional Specifications
Cut Dia Min 1.1020 27.99MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Cut Dia Max 1.4170 35.99MM
Overall Len 2.2240 56.49MM
