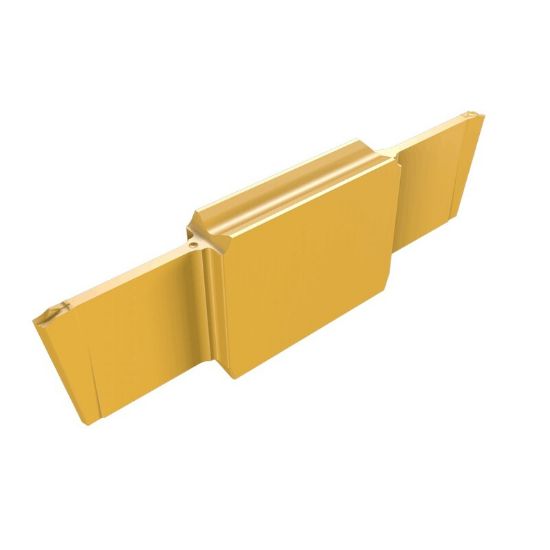

Picture of ISCAR BGM R1001J-6D IC1008 Cut Off Insert 0.003 Corner Radius TiAIN + TiN

ISCAR BGM R1001J-6D IC1008 Cut Off Insert 0.003 Corner Radius TiAIN + TiN

ANSI: BGM R1001J-6D IC1008

ISO: BGM R1001J-6D IC1008

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6004967
Delivery date: 3-5 days
$36.46

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Details

Narrow Material Cost Saving Inserts for Parting up to .787" Bar Diameters

Grade and Coating Description

Used for High temp. alloys, stainless steel and hardened steel. Low to medium speed, iterrupted cut.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Grooving & Parting Insert
Shipping State Texas
Insert Application General Purpose
Made In USA No
Grade IC1008
Insert Type Positive
Coating TiAIN + TiN
Package Size 10
Dimensional Specifications
Corner Radius 0.0039 0.10MM
Depth Of Cut Max 0.3940
Cut Rating <48HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat Carbide
Insert Style BG
Insert Shape/Cutter Pocket Shape Dog Bone
