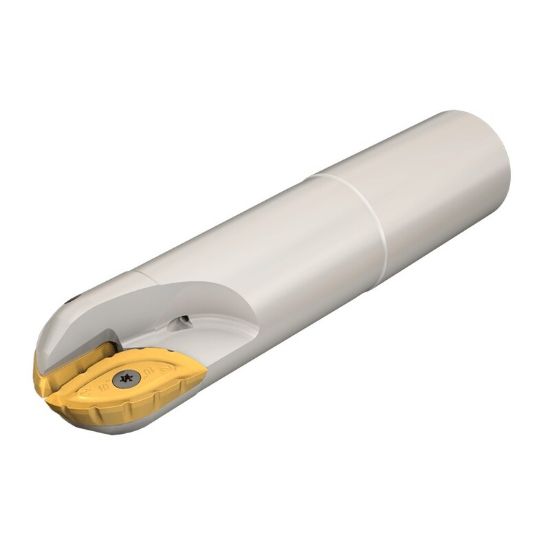

Picture of ISCAR BCM D.62-MMT10 Milling Cutter 0.625 Diameter Screw On T10 1.440 OAL 2 Flute

ISCAR BCM D.62-MMT10 Milling Cutter 0.625 Diameter Screw On T10 1.440 OAL 2 Flute

ANSI: BCM D.62-MMT10

ISO: BCM D.62-MMT10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3181082
Delivery date: 3-5 days
$288.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing
Shipping State Texas
Insert/Tool Tool
Insert Type Positive
Application Profile Milling, Copy Milling
Package Size 1
Made In USA No
Dimensional Specifications
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Overall Len 1.4400 36.58MM
Insert Size Ic 0.62
Machine Side Connection Size T10
Flutes/Inserts 2
Cutter Dia 0.6250 15.88MM - 5/8
Depth Of Cut Max 0.3030
Cut Dia Min 0.6250 15.88MM - 5/8
Machine Side Connection Type Screw On
Cutting & Machining Properties
Insert Style BC
Insert Shape/Cutter Pocket Shape Ball
Coolant Thru No
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7003603
