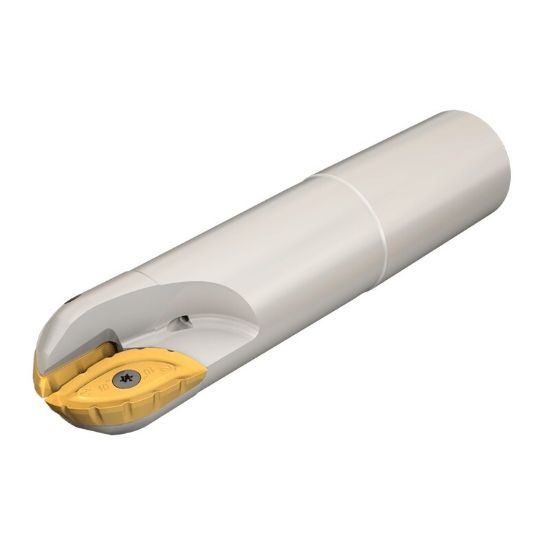

Picture of ISCAR BCM D.62-A-C.62-C Milling Cutter 0.625 Diameter Round 0.625 5.000 OAL 2 Flute

ISCAR BCM D.62-A-C.62-C Milling Cutter 0.625 Diameter Round 0.625 5.000 OAL 2 Flute

ANSI: BCM D.62-A-C.62-C

ISO: BCM D.62-A-C.62-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103436
Delivery date: 3-5 days
$312.96

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Insert Application Finishing, Semi Finishing
Insert Type Positive
Application Profile Milling, Copy Milling
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 0.62
Flutes/Inserts 2
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Machine Side Connection Size 0.6250 15.88MM
Cutter Dia 0.6250 15.88MM - 5/8
Cut Dia Min 0.6250 15.88MM - 5/8
Machine Side Connection Type Cylindrical
Overall Len 5.0000 127.00MM
Depth Of Cut Max 0.5000
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Cutting & Machining Properties
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Ball
Insert Style BC
Fasteners & Connectors
Insert Screw 7004234
