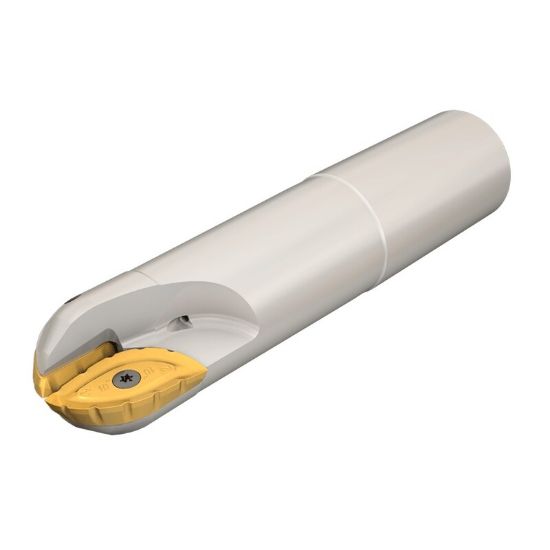

Picture of ISCAR BCM D.50-B-C.62 Milling Cutter 0.500 Diameter Round 0.625 6.500 OAL 2 Flute

ISCAR BCM D.50-B-C.62 Milling Cutter 0.500 Diameter Round 0.625 6.500 OAL 2 Flute

ANSI: BCM D.50-B-C.62

ISO: BCM D.50-B-C.62

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103435
Delivery date: 3-5 days
$303.36

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Profile Milling
Shipping State Texas
Made In USA No
Insert Application Semi Finishing, Finishing
Package Size 1
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 0.5
Overall Len 6.5000 165.10MM
Machine Side Connection Type Cylindrical
Cutter Dia 0.5000 12.70MM - 1/2
Cut Dia Max 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Machine Side Connection Size 0.6250 15.88MM
Depth Of Cut Max 0.5000
Cut Dia Min 0.5000 12.70MM - 1/2
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Cool Sply Type External
Coolant Thru No
Insert Shape/Cutter Pocket Shape Ball
Insert Style BC
Fasteners & Connectors
Insert Screw 7004234
