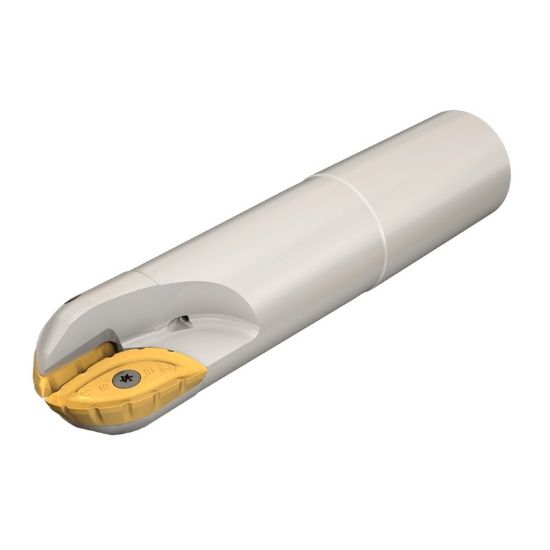

Picture of ISCAR BCM D.50-A-C.50 Milling Cutter 0.500 Diameter Round 0.500 4.720 OAL 2 Flute

ISCAR BCM D.50-A-C.50 Milling Cutter 0.500 Diameter Round 0.500 4.720 OAL 2 Flute

ANSI: BCM D.50-A-C.50

ISO: BCM D.50-A-C.50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103434
Delivery date: 3-5 days
$265.92

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application Finishing, Semi Finishing
Application Profile Milling, Copy Milling
Package Size 1
Insert/Tool Tool
Shipping State Texas
Insert Type Positive
Dimensional Specifications
Cut Dia Max 0.5000 12.70MM - 1/2
Overall Len 4.7200 119.89MM
Flutes/Inserts 2
Machine Side Connection Size 0.5000 12.70MM
Insert Size Ic 0.5
Cut Dia Min 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.4000
Machine Side Connection Type Cylindrical
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Ball
Cool Sply Type External
Insert Style BC
Fasteners & Connectors
Insert Screw 7004234
