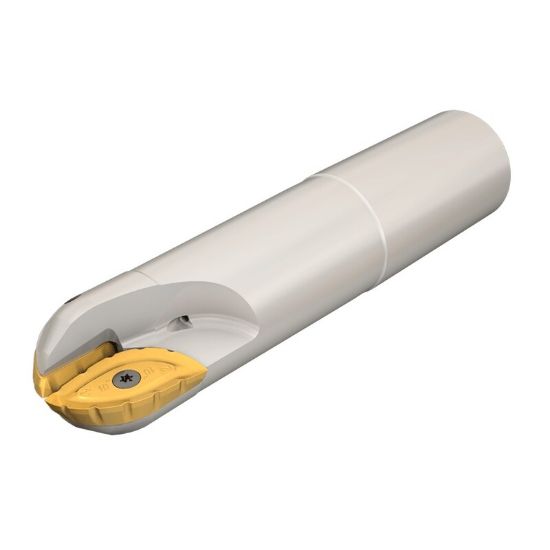

Picture of ISCAR BCM D1.25-M16 Milling Cutter 1.250 Diameter Screw On M16 3.071 OAL 2 Flute

ISCAR BCM D1.25-M16 Milling Cutter 1.250 Diameter Screw On M16 3.071 OAL 2 Flute

ANSI: BCM D1.25-M16

ISO: BCM D1.25-M16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104296
Delivery date: 3-5 days
$476.16

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Copy Milling, Profile Milling
Shipping State Texas
Made In USA No
Insert Application Finishing, Semi Finishing
Insert Type Positive
Package Size 1
Dimensional Specifications
Tool Material Steel
Cutter Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 1.25
Cut Dia Max 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Depth Of Cut Max 0.3190
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Size M16
Machine Side Connection Type Screw On
Overall Len 3.0710 78.00MM
Cutting & Machining Properties
Cool Sply Type External
Insert Style BC
Coolant Thru No
Insert Shape/Cutter Pocket Shape Ball
Fasteners & Connectors
Insert Screw 7002399
