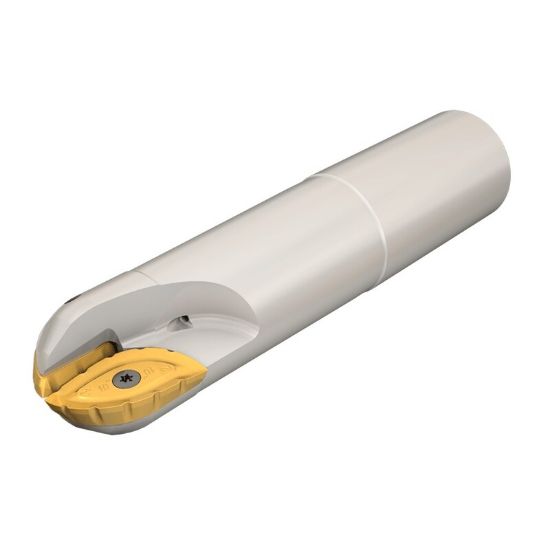

Picture of ISCAR BCM D1.25-B-W1.50-C Milling Cutter 1.250 Diameter Weldon 1.500 10.00 OAL 2 Flute

ISCAR BCM D1.25-B-W1.50-C Milling Cutter 1.250 Diameter Weldon 1.500 10.00 OAL 2 Flute

ANSI: BCM D1.25-B-W1.50-C

ISO: BCM D1.25-B-W1.50-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103055
Delivery date: 3-5 days
$622.08

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing
Insert Type Positive
Application Profile Milling, Copy Milling
Package Size 1
Made In USA No
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 1.5000 38.10MM
Depth Of Cut Max 1.3300
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Cutter Dia 1.2500 31.75MM - 1-1/4
Overall Len 10.0000 254.00MM
Tool Material Steel
Insert Size Ic 1.25
Cut Dia Max 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Ball
Insert Style BC
Coolant Thru Yes
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7002660
