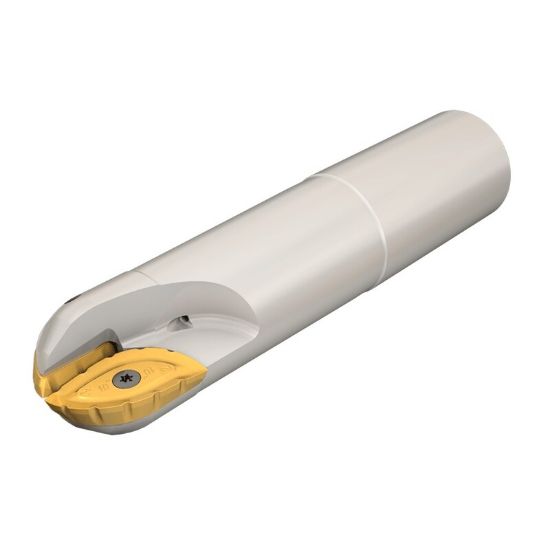

Picture of ISCAR BCM D1.00-M12 Milling Cutter 1.000 Diameter Screw On M12 2.677 OAL 2 Flute

ISCAR BCM D1.00-M12 Milling Cutter 1.000 Diameter Screw On M12 2.677 OAL 2 Flute

ANSI: BCM D1.00-M12

ISO: BCM D1.00-M12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3105391
Delivery date: 3-5 days
$366.72

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing
Insert Type Positive
Application Profile Milling, Copy Milling
Insert/Tool Tool
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Insert Size Ic 1
Cutter Dia 1.0000 25.40MM
Flutes/Inserts 2
Overall Len 2.6770 68.00MM
Depth Of Cut Max 0.6420
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Ball
Insert Style BC
Coolant Thru No
Cool Sply Type External
