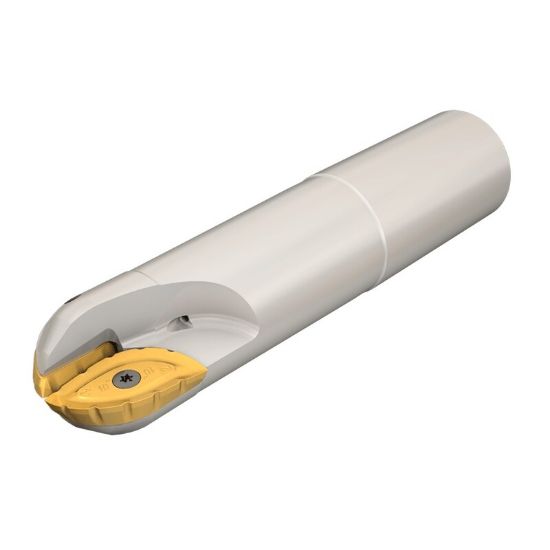

Picture of ISCAR BCM D1.00-B-W1.25-C Milling Cutter 1.000 Diameter Weldon 1.250 8.750 OAL 2 Flute

ISCAR BCM D1.00-B-W1.25-C Milling Cutter 1.000 Diameter Weldon 1.250 8.750 OAL 2 Flute

ANSI: BCM D1.00-B-W1.25-C

ISO: BCM D1.00-B-W1.25-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103053
Delivery date: 3-5 days
$478.08

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing
Insert Type Positive
Application Profile Milling, Copy Milling
Insert/Tool Tool
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Cut Dia Max 1.0000 25.40MM
Depth Of Cut Max 1.0200
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 1
Cutter Dia 1.0000 25.40MM
Flutes/Inserts 2
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 8.7500 222.25MM
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Ball
Insert Style BC
Cool Sply Type Through Hole
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7000216
