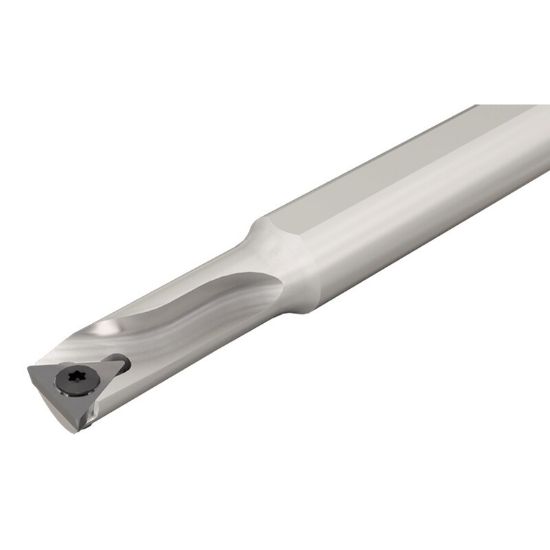

Picture of ISCAR BBN 10-2 Turning Boring Bar Triangle Insert 0.625 Boring Bar

ISCAR BBN 10-2 Turning Boring Bar Triangle Insert 0.625 Boring Bar

ANSI: BBN 10-2

ISO: BBN 10-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3600013
Delivery date: 3-5 days
$148.80

Important Notes

(1) When used with insert TPG-XL Dmin=Dmin -.046

Details

Screw lock boring bars for 11° clearance triangular inserts.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Package Size 1
Shipping State Texas
Insert/Tool Tool
Insert Type Positive
Application Int.Turning
Dimensional Specifications
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Insert Size Ic 07 "21"
Lead Angle 95°
Machine Side Connection Size 0.6250 15.88MM
Overall Len 8.0000 203.20MM
Cutting & Machining Properties
Inter/Extern Internal
Hand R/L Right
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
