  • ISCAR APK D1.50-2.00-W1.25 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Weldon 1.250 5.000 OAL 12 Flute

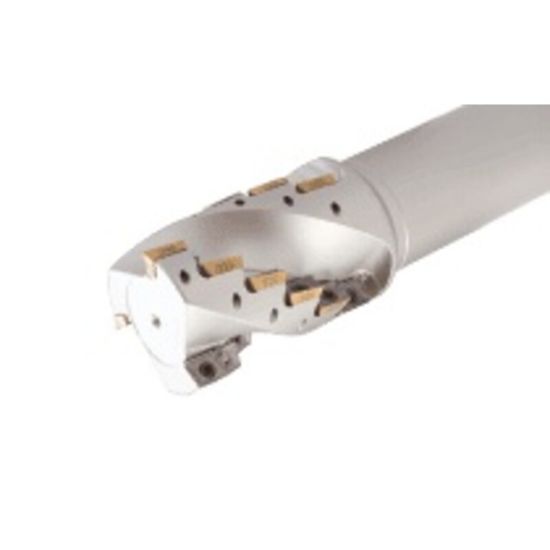

Picture of ISCAR APK D1.50-2.00-W1.25 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Weldon 1.250 5.000 OAL 12 Flute

ISCAR APK D1.50-2.00-W1.25 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Weldon 1.250 5.000 OAL 12 Flute

ANSI: APK D1.50-2.00-W1.25

ISO: APK D1.50-2.00-W1.25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100276
Delivery date: 3-5 days
$1,008.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert/Tool Tool
Shipping State Texas
Insert Application Roughing
Made In USA No
Application Side Milling, Long Edge Milling
Package Size 1
Dimensional Specifications
Depth Of Cut Max 1.0200
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Overall Len 5.0000 127.00MM
Insert Size Ic 10
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 12
Cut Dia Min 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Insert Style AP
Coolant Thru No
Fasteners & Connectors
Insert Screw 7000402
