  • ISCAR APK D1.25-1.75W1.25FE Milling Cutter 90.0°, Corn Cob 1.250 Diameter Weldon 1.250 4.500 OAL 12 Flute

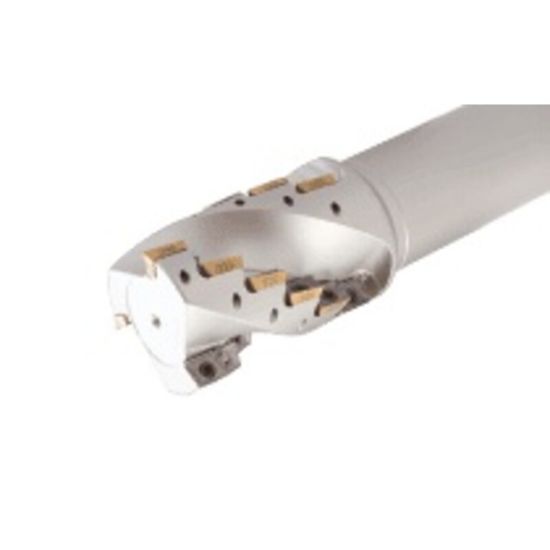

Picture of ISCAR APK D1.25-1.75W1.25FE Milling Cutter 90.0°, Corn Cob 1.250 Diameter Weldon 1.250 4.500 OAL 12 Flute

ISCAR APK D1.25-1.75W1.25FE Milling Cutter 90.0°, Corn Cob 1.250 Diameter Weldon 1.250 4.500 OAL 12 Flute

ANSI: APK D1.25-1.75W1.25FE

ISO: APK D1.25-1.75W1.25FE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100275
Delivery date: 3-5 days
$812.16

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Made In USA No
Application Side Milling, Long Edge Milling
Insert Type Positive
Insert/Tool Tool
Shipping State Texas
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 10
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Depth Of Cut Max 2.0600
Cutter Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Flutes/Inserts 12
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Style AP
Cool Sply Type External
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru No
Fasteners & Connectors
Insert Screw 7002441
