  • ISCAR APK D .75-1.12-W.75FE Milling Cutter 90.0°, Corn Cob 0.750 Diameter Weldon 0.750 3.500 OAL 4 Flute

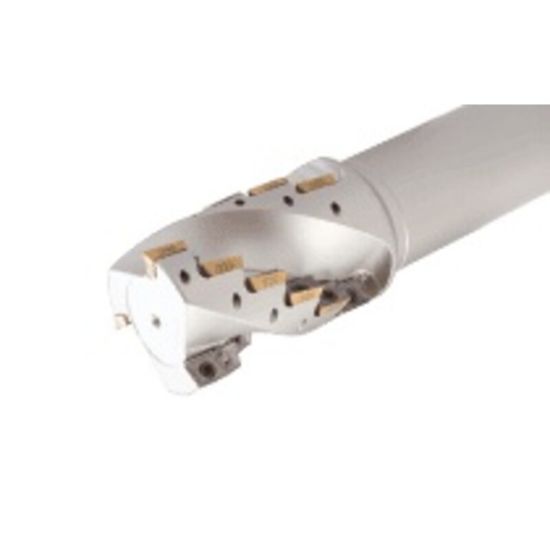

Picture of ISCAR APK D .75-1.12-W.75FE Milling Cutter 90.0°, Corn Cob 0.750 Diameter Weldon 0.750 3.500 OAL 4 Flute

ISCAR APK D .75-1.12-W.75FE Milling Cutter 90.0°, Corn Cob 0.750 Diameter Weldon 0.750 3.500 OAL 4 Flute

ANSI: APK D .75-1.12-W.75FE

ISO: APK D .75-1.12-W.75FE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100273
Delivery date: 3-5 days
$601.92

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Long Edge Milling
Insert Type Positive
Package Size 1
Insert Application Roughing
Made In USA No
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Cut Dia Max 0.7500 19.05MM - 3/4
Overall Len 3.5000 88.90MM
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Insert Size Ic 10
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Tool Material Steel
Depth Of Cut Max 1.4700
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Style AP
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7002441
