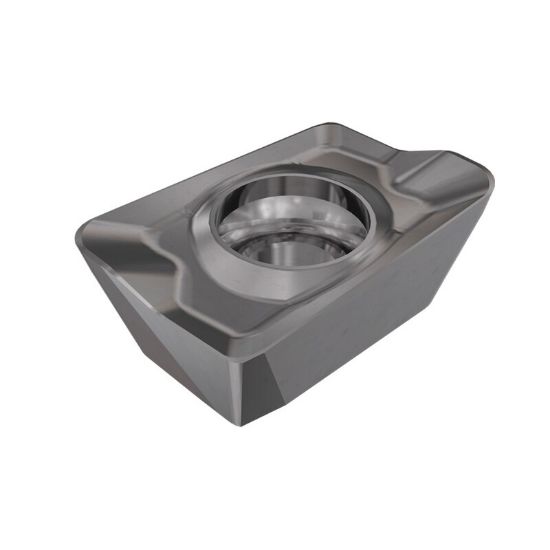

Picture of ISCAR ADKT1505PDR-HM IC30N Milling Insert Paralelagram 0.031 Corner Radius

ISCAR ADKT1505PDR-HM IC30N Milling Insert Paralelagram 0.031 Corner Radius

ANSI: ADKT1505PDR-HM IC30N

ISO: ADKT1505PDR-HM IC30N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5600618
Delivery date: 3-5 days
$17.32

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Cermet grade. Provides excellent resistance to wear and plastic deformation even at high cutting speeds and medium feeds. Useful for semi finishing and finishing.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Grade IC30N
Package Size 10
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Insert
Application Milling Insert
Made In USA No
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Depth Of Cut Max 0.4720
Cut Rating <40HRC Steel, High Temp, Stainless Steel
Insert Size Ic 15
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AD
