  • ISCAR ADK D1.50-1.50-W1.25 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Weldon 1.250 4.500 OAL 6 Flute

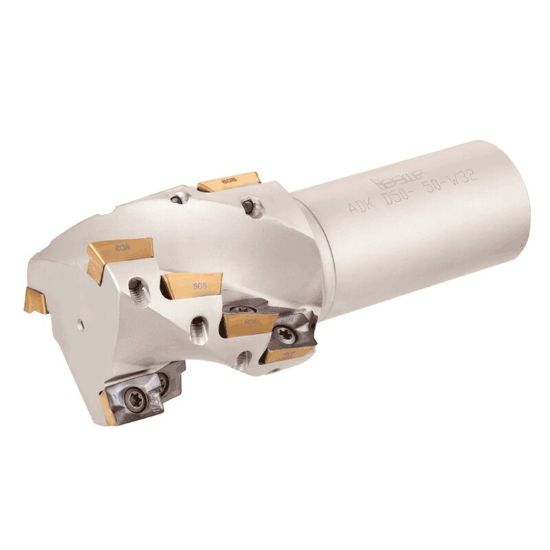

Picture of ISCAR ADK D1.50-1.50-W1.25 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Weldon 1.250 4.500 OAL 6 Flute

ISCAR ADK D1.50-1.50-W1.25 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Weldon 1.250 4.500 OAL 6 Flute

ANSI: ADK D1.50-1.50-W1.25

ISO: ADK D1.50-1.50-W1.25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100461
Delivery date: 3-5 days
$998.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Long Edge Milling
Insert/Tool Tool
Insert Type Positive
Insert Application Roughing
Package Size 1
Made In USA No
Shipping State Texas
Dimensional Specifications
Machine Side Connection Type Weldon
Tool Material Steel
Cut Dia Min 1.5000 38.10MM - 1-1/2
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Depth Of Cut Max 0.4650
Insert Size Ic 15
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 6
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AD
Coolant Thru No
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7000402
