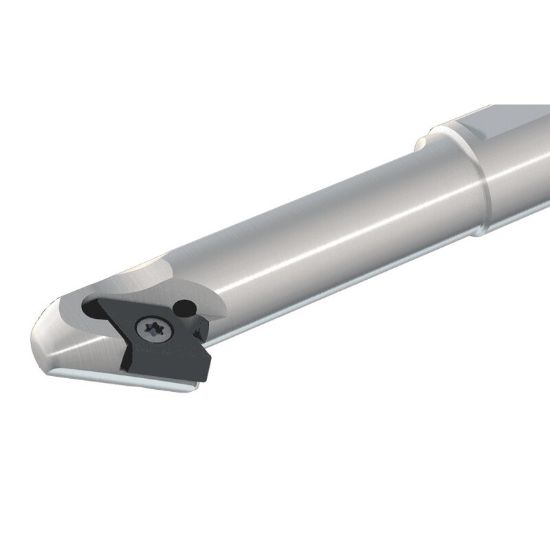

Picture of ISCAR A20R SDZNR-07 Turning Boring Bar 55.0° Insert 0.787 Boring Bar

ISCAR A20R SDZNR-07 Turning Boring Bar 55.0° Insert 0.787 Boring Bar

ANSI: A20R SDZNR-07

ISO: A20R SDZNR-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6709251
Delivery date: 3-5 days
$368.64

Important Notes

Use right-hand inserts on right-hand bars and vice versa. A - steel shank with coolant hole, E - carbide shank with coolant hole.

Details

Back turning Boring bars with steel and carbide shanks carrying the DNGP 22.. 55° rhombic inserts with negative and positive alternating flanks that enabled bar design with a firm insert clamping and small minimum diameter.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Int.Back Turning, Int.Turning
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Overall Len 7.8740 200.00MM
Insert Size Ic 07 "22"
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.7874 20.00MM
Lead Angle 93° B
Shank/Pilot Dia 0.7874 20.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Right
Insert Style DN
Inter/Extern Internal
