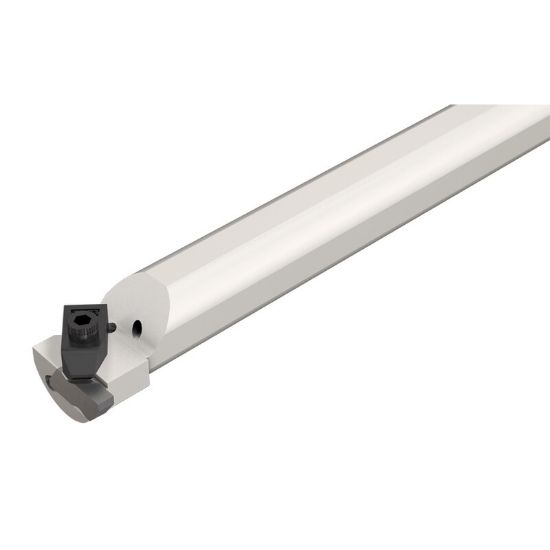

Picture of ISCAR A16-FLER2 Boring Bar Top Notch Steel 1.000 Boring Bar

ISCAR A16-FLER2 Boring Bar Top Notch Steel 1.000 Boring Bar

ANSI: A16-FLER2

ISO: A16-FLER2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2406473
Delivery date: 3-5 days
$327.36

Important Notes

Use left-hand inserts on right-hand tools and vice versa

Details

Internal grooving and threading bars with coolant channels.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Shipping State Texas
Package Size 1
Insert Application General Purpose
Made In USA No
Application Int.Threading, Int.Grooving
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 12.0000 304.80MM
Machine Side Connection Type Boring Bar
Insert Size Ic 2
Tool Material Steel
Cutting & Machining Properties
Inter/Extern Internal
Insert Style FL
Insert Shape/Cutter Pocket Shape Top Notch
Hand R/L Right
