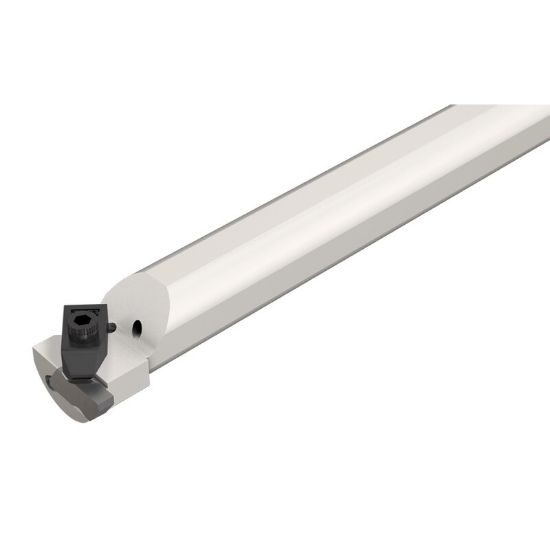

Picture of ISCAR A12-FLEL2 Boring Bar Top Notch Steel 0.750 Boring Bar

ISCAR A12-FLEL2 Boring Bar Top Notch Steel 0.750 Boring Bar

ANSI: A12-FLEL2

ISO: A12-FLEL2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2406369
Delivery date: 3-5 days
$250.56

Important Notes

Use left-hand inserts on right-hand tools and vice versa

Details

Internal grooving and threading bars with coolant channels.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application General Purpose
Made In USA No
Shipping State Texas
Application Int.Threading, Int.Grooving
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Machine Side Connection Type Boring Bar
Overall Len 10.0000 254.00MM
Insert Size Ic 2
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Inter/Extern Internal
Hand R/L Left
Insert Shape/Cutter Pocket Shape Top Notch
Insert Style FL
