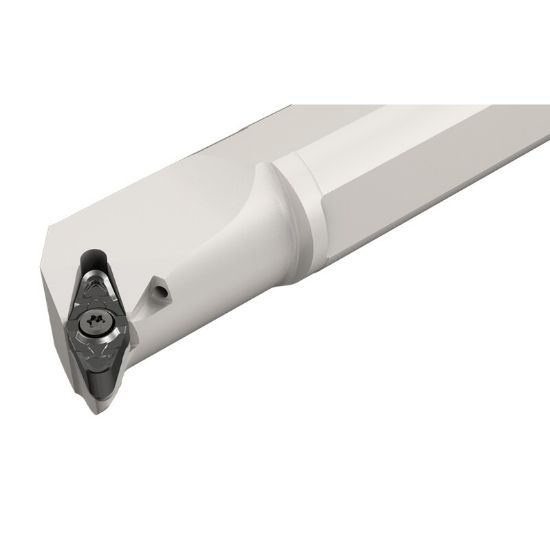

Picture of ISCAR A-SVQNL 24-4-AL-JHP Turning Boring Bar 35.0° Insert 1.500 Boring Bar

ISCAR A-SVQNL 24-4-AL-JHP Turning Boring Bar 35.0° Insert 1.500 Boring Bar

ANSI: A-SVQNL 24-4-AL-JHP

ISO: A-SVQNL 24-4-AL-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3336017
Delivery date: 3-5 days
$778.56

Details

Screw lock boring bars carrying the 35° rhombic inserts.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Insert Application General Purpose
Insert Type Negative
Insert/Tool Tool
Shipping State Texas
Application Int.Turning
Dimensional Specifications
Machine Side Connection Size 1.5000 38.10MM
Clearance Angle 25.0°
Lead Angle 117.5°
Machine Side Connection Type Boring Bar
Insert Size Ic 22 "43"
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Hand R/L Left
Insert Style VN
Inter/Extern Internal
