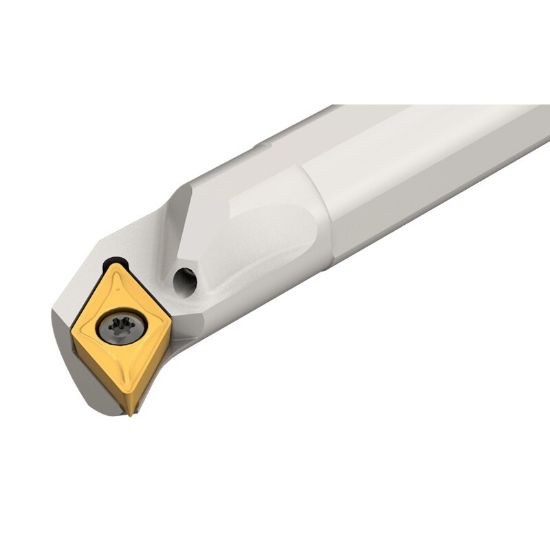

Picture of ISCAR A-SDUCR 12-13-SL Turning Boring Bar 55.0° Insert 0.750 Boring Bar

ISCAR A-SDUCR 12-13-SL Turning Boring Bar 55.0° Insert 0.750 Boring Bar

ANSI: A-SDUCR 12-13-SL

ISO: A-SDUCR 12-13-SL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3603513
Delivery date: 3-5 days
$347.52

Details

Screw lock boring bars carrying the 55° rhombic inserts with 7° clearance angle. A long groove on the pocket and a matching ridge at the insert bottom ensure high rigidity in profiling applications.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Texas
Application Int.Turning
Package Size 1
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Boring Bar
Lead Angle 93°
Overall Len 10.0000 254.00MM
Insert Size Ic 13
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Clearance Angle 30.0°
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Hand R/L Right
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
