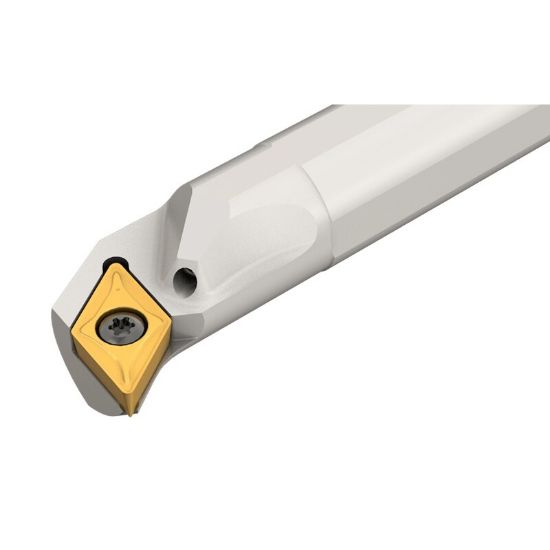

Picture of ISCAR A-SDUCL 16-13-SL Turning Boring Bar 55.0° Insert 1.000 Boring Bar

ISCAR A-SDUCL 16-13-SL Turning Boring Bar 55.0° Insert 1.000 Boring Bar

ANSI: A-SDUCL 16-13-SL

ISO: A-SDUCL 16-13-SL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3603514
Delivery date: 3-5 days
$321.60

Details

Screw lock boring bars carrying the 55° rhombic inserts with 7° clearance angle. A long groove on the pocket and a matching ridge at the insert bottom ensure high rigidity in profiling applications.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Package Size 1
Insert Type Positive
Application Int.Turning
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Boring Bar
Clearance Angle 30.0°
Insert Size Ic 13
Lead Angle 93°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 12.0000 304.80MM
Cutting & Machining Properties
Inter/Extern Internal
Hand R/L Left
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
