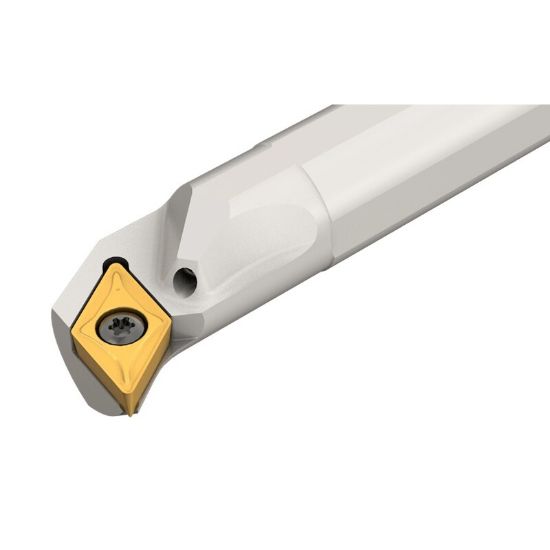

Picture of ISCAR A-SDUCL 12-13-SL Turning Boring Bar 55.0° Insert 0.750 Boring Bar

ISCAR A-SDUCL 12-13-SL Turning Boring Bar 55.0° Insert 0.750 Boring Bar

ANSI: A-SDUCL 12-13-SL

ISO: A-SDUCL 12-13-SL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3603512
Delivery date: 3-5 days
$347.52

Details

Screw lock boring bars carrying the 55° rhombic inserts with 7° clearance angle. A long groove on the pocket and a matching ridge at the insert bottom ensure high rigidity in profiling applications.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Texas
Insert Application General Purpose
Insert Type Positive
Application Int.Turning
Dimensional Specifications
Insert Size Ic 13
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Clearance Angle 30.0°
Machine Side Connection Size 0.7500 19.05MM
Lead Angle 93°
Overall Len 10.0000 254.00MM
Machine Side Connection Type Boring Bar
Cutting & Machining Properties
Insert Style DC
Hand R/L Left
Insert Shape/Cutter Pocket Shape 55.0°
Inter/Extern Internal
