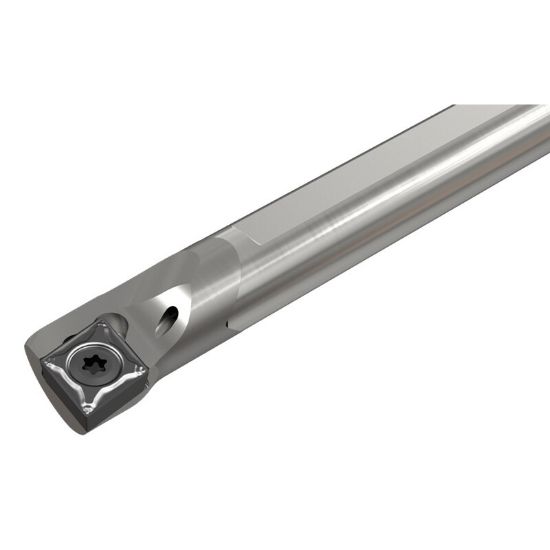

Picture of ISCAR A-SCLCR 8-2 Turning Boring Bar 80.0° Insert 0.500 Boring Bar

ISCAR A-SCLCR 8-2 Turning Boring Bar 80.0° Insert 0.500 Boring Bar

ANSI: A-SCLCR 8-2

ISO: A-SCLCR 8-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6854285
Delivery date: 3-5 days
$222.72

Important Notes

S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole

Details

Screw lock boring bars for 80° rhombic inserts with 7° clearance

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Texas
Application Int.Turning
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
Insert Size Ic 06 "21"
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Tool Material Carbide
Lead Angle 95°
Overall Len 7.0000 177.80MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 80.0°
Inter/Extern Internal
Insert Style CC
