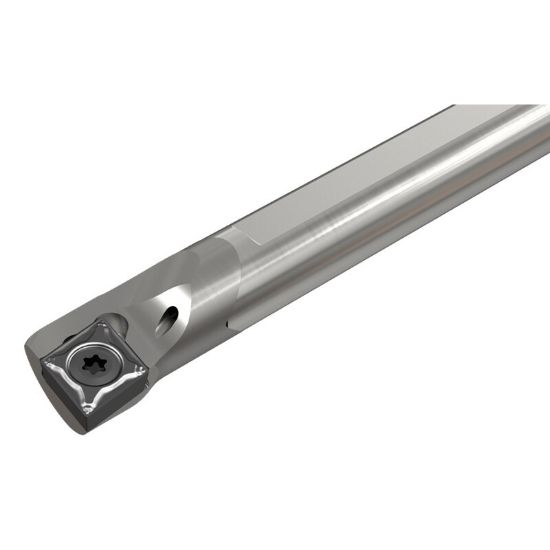

Picture of ISCAR A-SCLCL 6-2 Turning Boring Bar 80.0° Insert 0.375 Boring Bar

ISCAR A-SCLCL 6-2 Turning Boring Bar 80.0° Insert 0.375 Boring Bar

ANSI: A-SCLCL 6-2

ISO: A-SCLCL 6-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6807415
Delivery date: 3-5 days
$222.72

Important Notes

S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole

Details

Screw lock boring bars for 80° rhombic inserts with 7° clearance

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Turning
Insert Application General Purpose
Made In USA No
Package Size 1
Shipping State Texas
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Lead Angle 95°
Insert Size Ic 06 "21"
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3750 9.53MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 5.0000 127.00MM
Tool Material Steel
Cutting & Machining Properties
Inter/Extern Internal
Insert Style CC
Hand R/L Left
Insert Shape/Cutter Pocket Shape 80.0°
