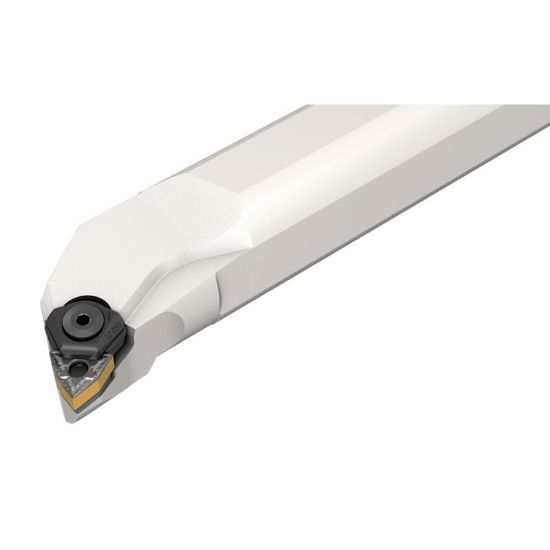

Picture of ISCAR A-MWLNL 20-3W Turning Boring Bar Trigon Insert 1.250 Boring Bar

ISCAR A-MWLNL 20-3W Turning Boring Bar Trigon Insert 1.250 Boring Bar

ANSI: A-MWLNL 20-3W

ISO: A-MWLNL 20-3W

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3601354
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

Top-wedge-lock boring-bars carrying the double-sided trigon inserts. S - Steel shank; A - Steel shank with coolant hole.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Int.Turning
Package Size 1
Shipping State Texas
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Machine Side Connection Type Boring Bar
Lead Angle 95°
Insert Size Ic 06 "33"
Overall Len 14.0000 355.60MM
Cutting & Machining Properties
Insert Style WN
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Trigon
Hand R/L Left
