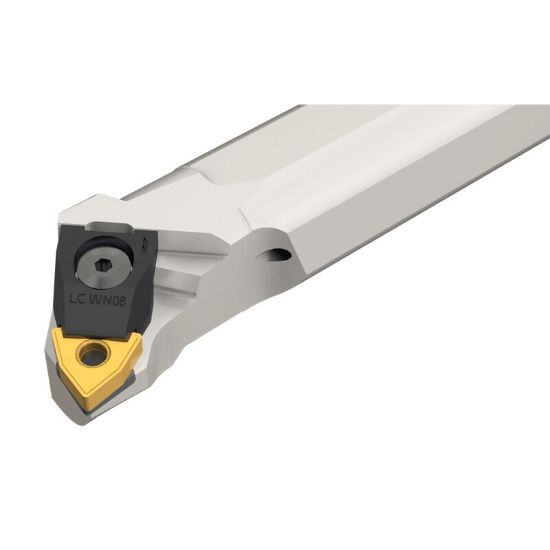

Picture of ISCAR A-MULNR 20-4MW Turning Boring Bar Trigon Insert 1.250 Boring Bar

ISCAR A-MULNR 20-4MW Turning Boring Bar Trigon Insert 1.250 Boring Bar

ANSI: A-MULNR 20-4MW

ISO: A-MULNR 20-4MW

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3602320
Delivery date: 3-5 days
$512.64

Important Notes

Only LC WN08 is supplied with the boring bar. The other wedge should be ordered separately. RH wedge for RH tool. LH wedge for LH tool.

Details

MULTI-WEDGE lock, boring bars for negative 80° rhombic, trigon and square inserts.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Tool
Application Int.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Overall Len 14.0000 355.60MM
Lead Angle 95°
Insert Size Ic 4
Tool Material Steel
Machine Side Connection Type Boring Bar
Machine Side Connection Size 1.2500 31.75MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Style WN,CN
Hand R/L Right
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Trigon
