  • ISCAR 3M F90AX D6.00-8-2.00-20 Milling Cutter 90.0° 6.000 Diameter Face Mill 2.000 2.500 OAL 8 Flute

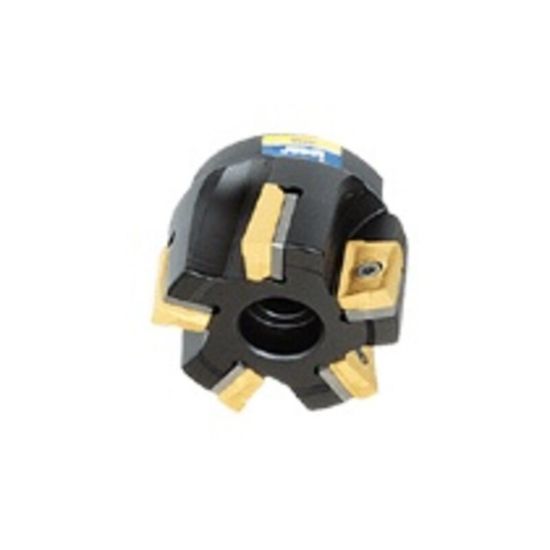

Picture of ISCAR 3M F90AX D6.00-8-2.00-20 Milling Cutter 90.0° 6.000 Diameter Face Mill 2.000 2.500 OAL 8 Flute

ISCAR 3M F90AX D6.00-8-2.00-20 Milling Cutter 90.0° 6.000 Diameter Face Mill 2.000 2.500 OAL 8 Flute

ANSI: 3M F90AX D6.00-8-2.00-20

ISO: 3M F90AX D6.00-8-2.00-20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3102739
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Insert Type Positive
Package Size 1
Insert Application Roughing
Made In USA No
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Machine Side Connection Size 2.0000 50.80MM
Cut Dia Max 6.0000 152.40MM
Overall Len 2.5000 63.50MM
Cutter Dia 6.0000 152.40MM
Machine Side Connection Type Face Mill/Shell Mill
Cut Dia Min 6.0000 152.40MM
Insert Size Ic 20
Depth Of Cut Max 0.7900
Tool Material Steel
Flutes/Inserts 8
Cutting & Machining Properties
Insert Style AX
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7002377
